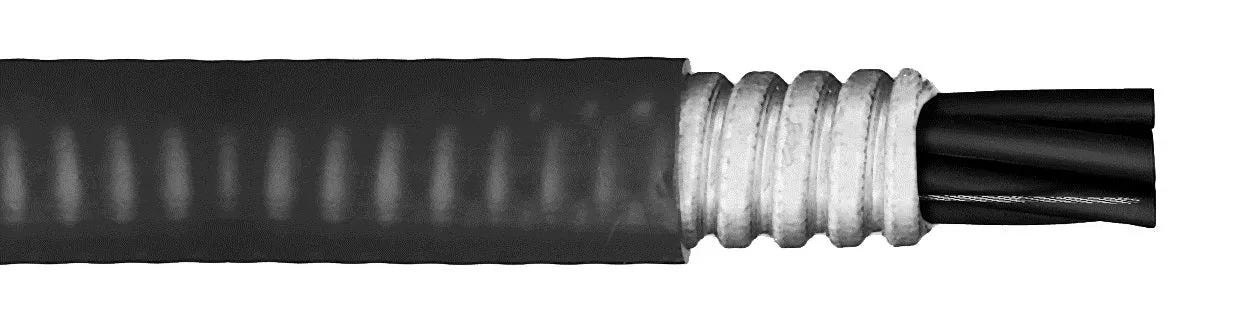

10 AWG 3C Tray Cable Type MC 600V XLP/AIA/PVC Cable
Applications:
Tray Cable Type MC 600V XLP/AIA/PVC Cable is used in trays and raceways. It is also suitable for direct burial. Tray Cable Type MC performs equally well in wet and dry applications. It is also allowed for Class I, Division II and Class II, Division II, and Class III, Division I and II NEC 334 applications. The electrical cable is rated 600 volts. It has a temperature rating of 90°C wet or dry, while the minimum recommended temperature is -25°C. Type MC has superior resistance to sunlight, oil, chemicals, crushing, moisture, and flames. It is a cheaper alternative to similar cables installed in a conduit.
Also Known As:
10 AWG 3C Cable Tray, 10 AWG 3C Cable Tray Types, 10 AWG 3C Electrical Cable Tray, 10 AWG 3C Pvc Cable Tray, 10 AWG 3C wire cable tray, 10 AWG 3C cable tray wire, 10 AWG 3C XLP Cable, 10 AWG 3C PVC Cable, 10 AWG 3C Tray Control Cable, 10 AWG 3C Tray Control Instrumentation Cable, 10 AWG 3C Multi-Conductor Tray Cable, 10 AWG 3C Aluminum Interlocked Armor Tray Cable, 10 AWG 3C direct burial cable, 10 AWG 3C raceway cable.
Standards:
- • UL 1569, UL 44, UL 1581, UL Type MC
- • NEC Type XHHW-2 conductors
- • IEEE 1202
- • OSHA Acceptable
Conductor:
Bare compressed stranded copper conductors with excellent conductivity per ASTM B-8 and B-3. The conductors are highly flexible. Stranding makes the conductor thicker, thus lowering the resistance of the conductor. The cable also has a grounding conductor. Conductors are connected with fillers and a binder tape.
Insulation:
Flame-retardant Cross-linked Polyethylene (XLPE) insulation is resistant to moisture, heat, and mechanical impact.
Jacket:
Flame and Sunlight resistant Black PVC Jacket. The color-coding of the jacket follows the scheme:
- • 1 – Black
- • 2 – Red
- • 3 – Blue
- • 4 – Orange
Armor:
Aluminum interlocked armor.
