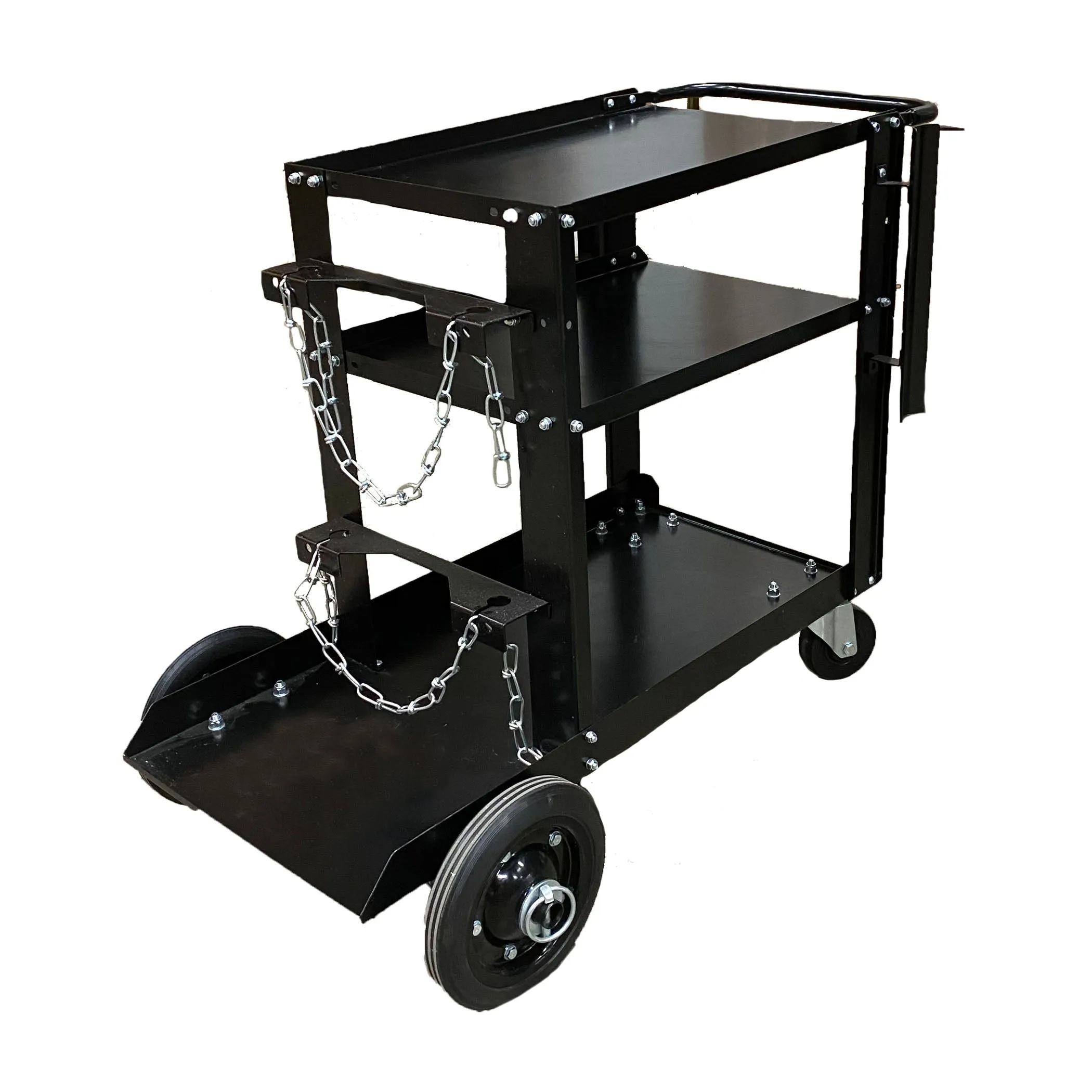

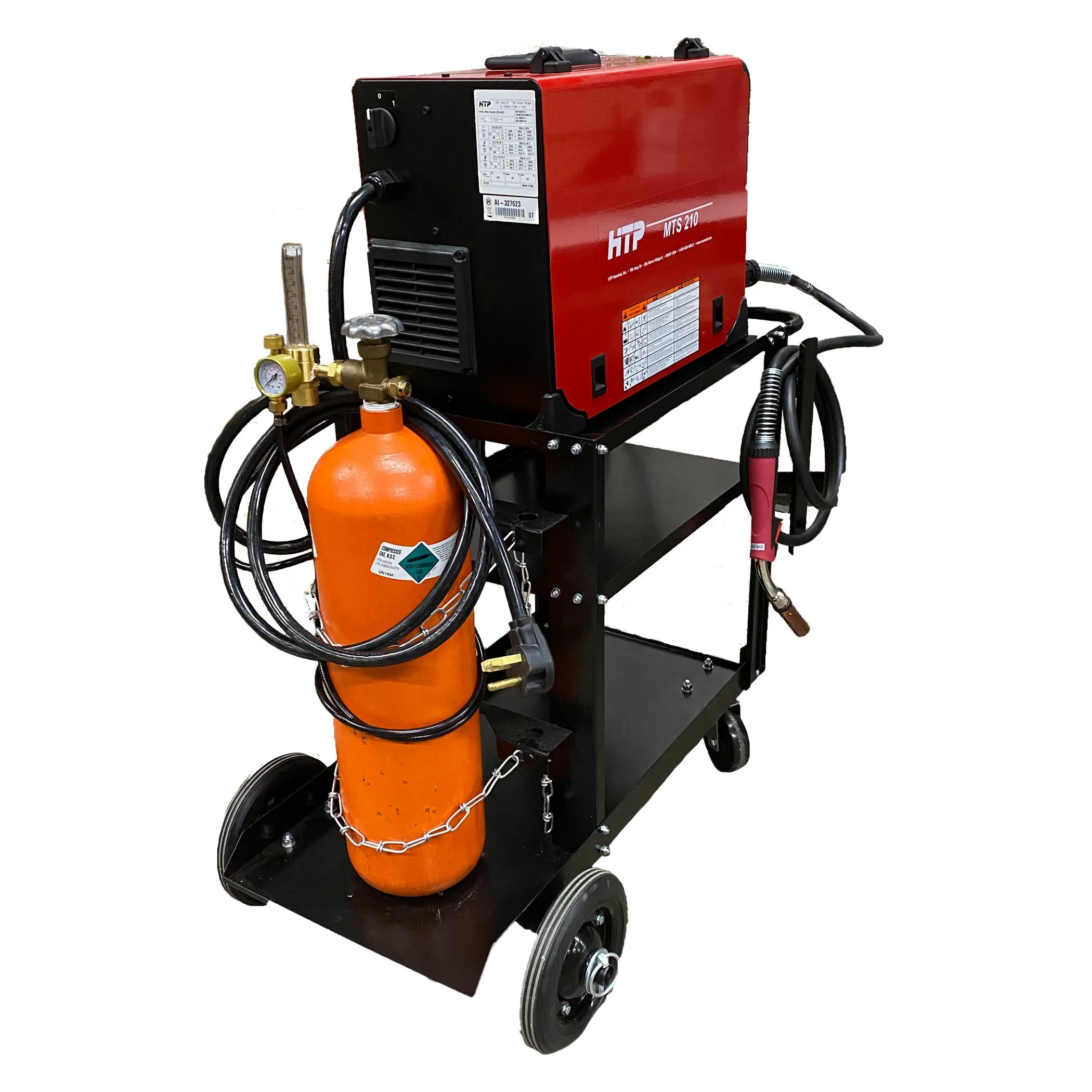

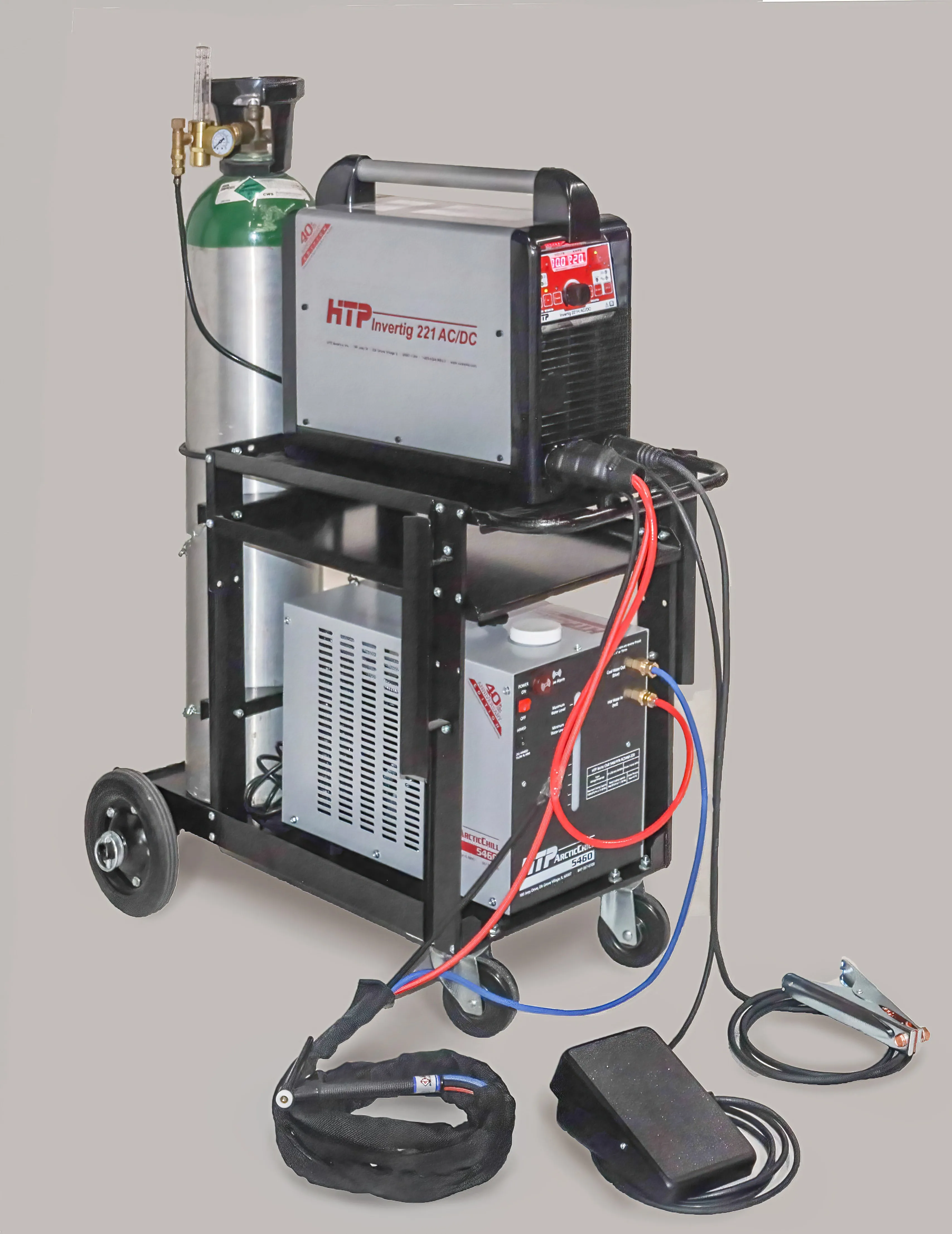

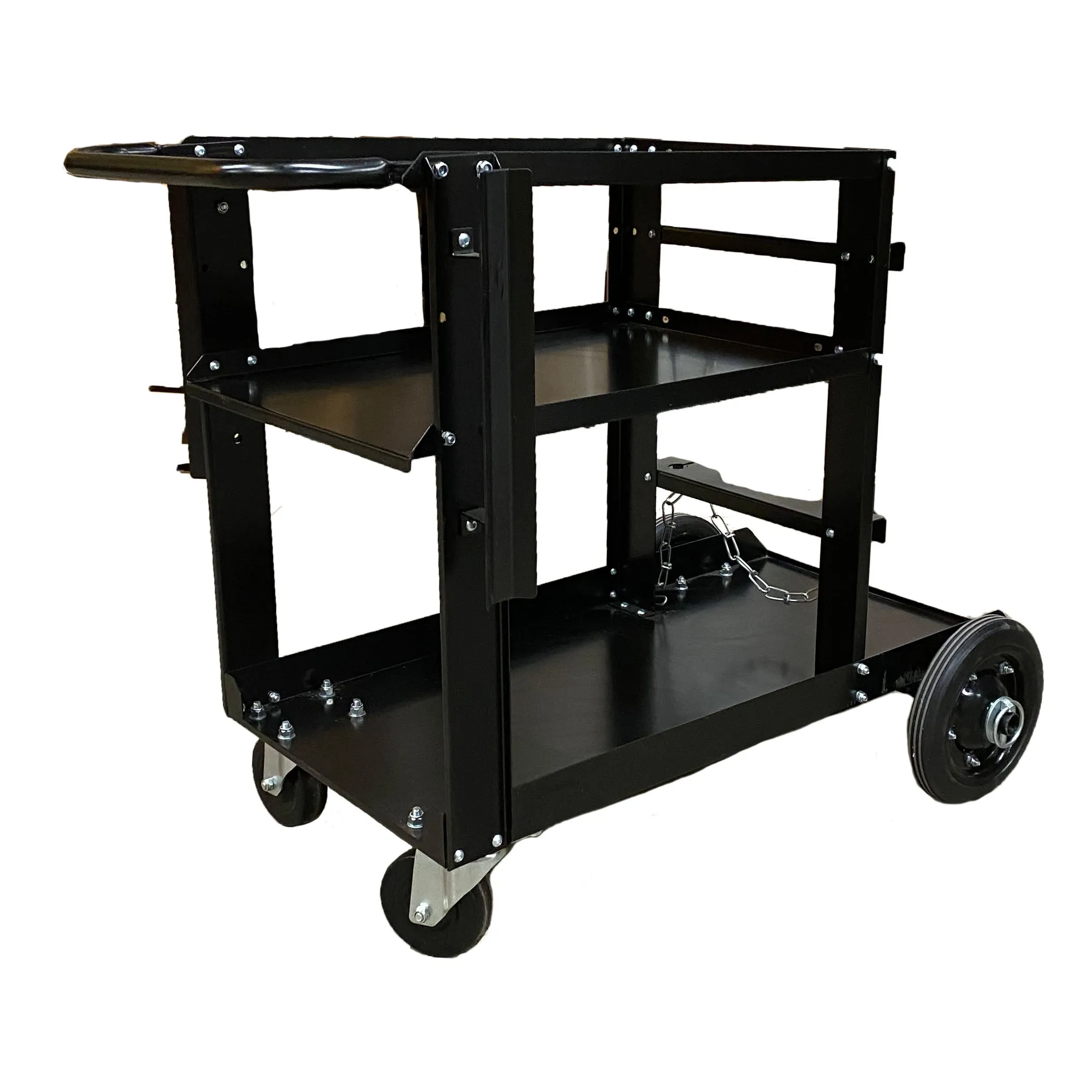

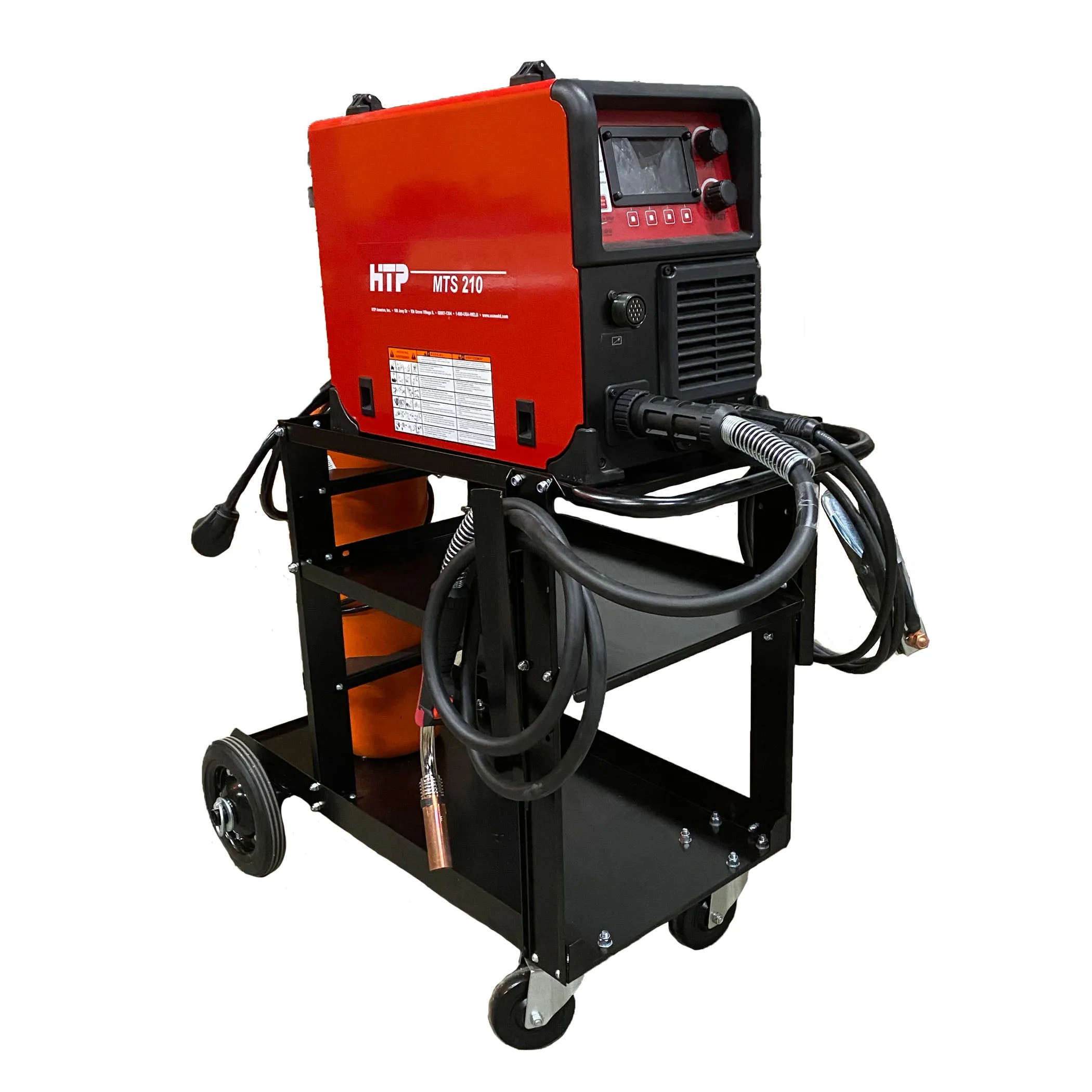

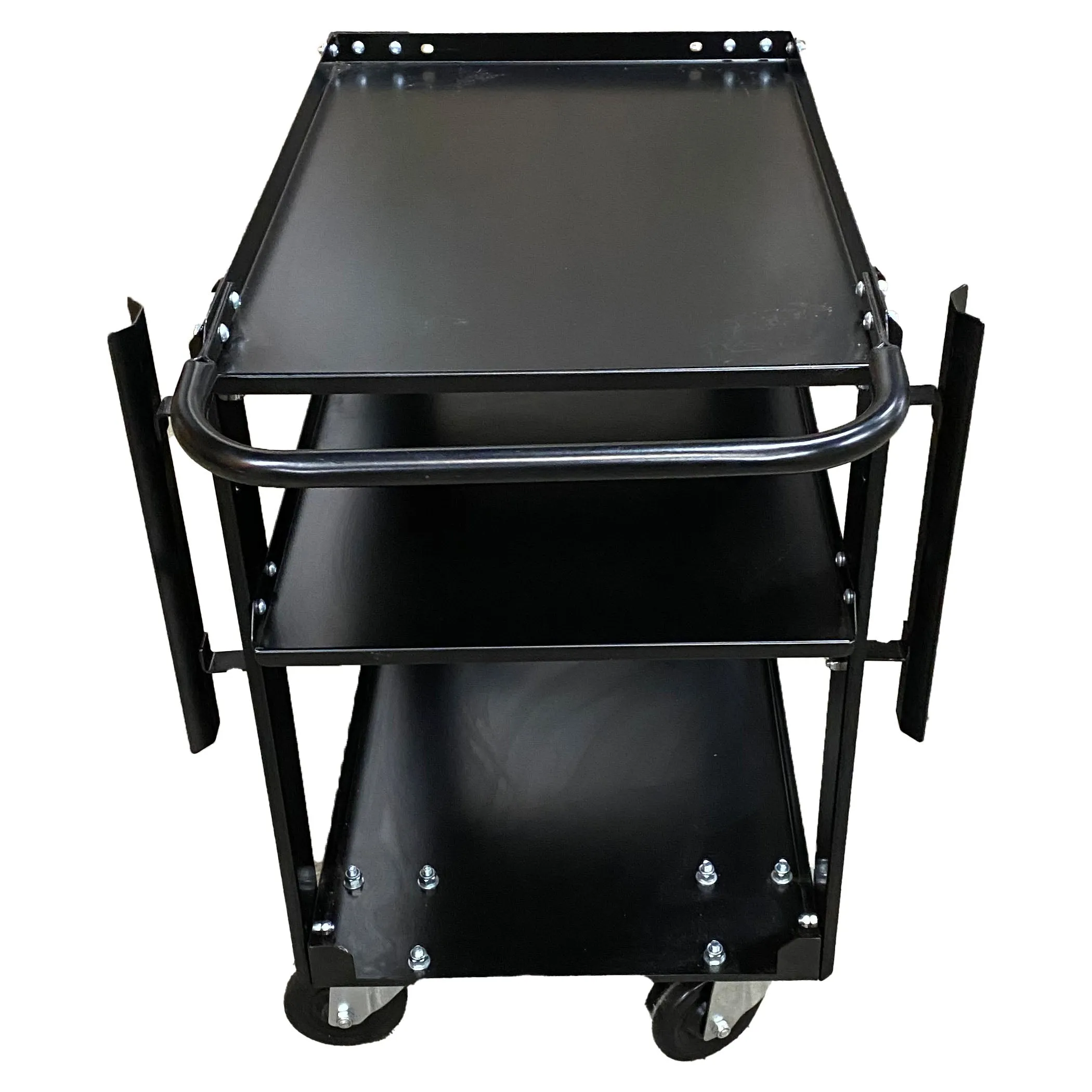

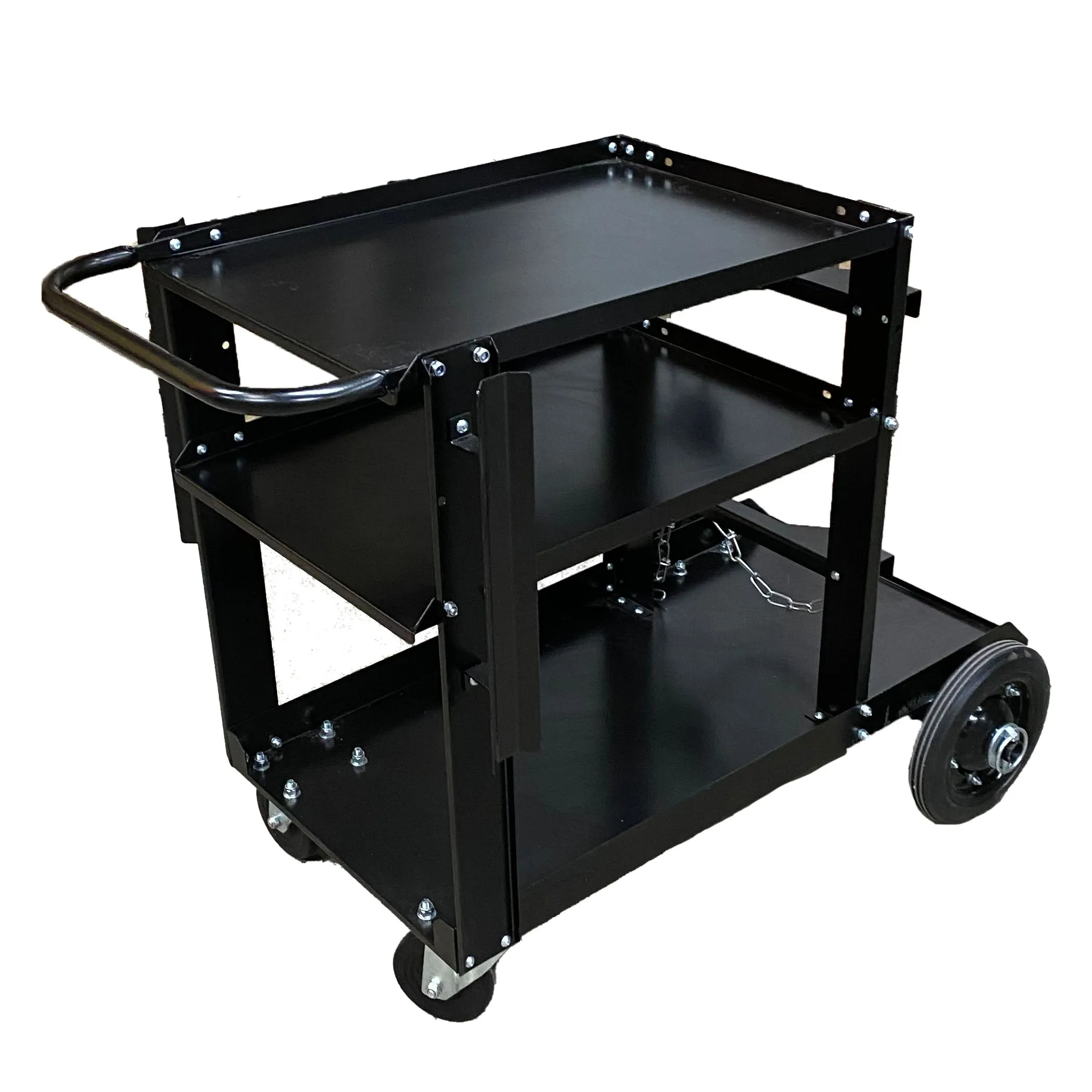

We designed our welding cart to work with many MIG, TIG, and plasma cutting machines. Three trays provide ample space to hold your welding machine, water-cooler, and welding accessories, and two hooks provide space for hanging your MIG gun, TIG torch, plasma torch, as well as your ground cable and clamp assembly. Our versatile cart also allows you to install the middle tray in one of two positions—achieved by removing and replacing only a few nuts and bolts. The tank tray at the back of the cart holds either a 60 cu ft cylinder, an 80 cu ft cylinder, or even a large, 122 cu ft cylinder.* Designed with portability and ease of use in mind, our cart comes equipped with a handle, which enables you to easily pull the cart around your shop or job site. The ultimate in durability, we made our cart with 16 gauge (bottom tray) and 18 gauge sheet metal with a matte black finish.

*Cart includes two bottle chains.

Dimensions

Overall Dimensions	36-1/2" L x 17-1/4" W x 26-3/4" H
Tray Dimensions	21-1/4" L x 12-3/4" W
Tank Tray	10-1/2" L x 12-3/4" W

Shelf Clearance

Middle Tray Position 1	Top: 4-1/2" Bottom: 14-1/2"
Middle Tray Position 2	Top: 6-1/2" Bottom: 12-1/2"
Wheels	7-3/4" x 1-3/4"
Weight	38.76 Lbs
