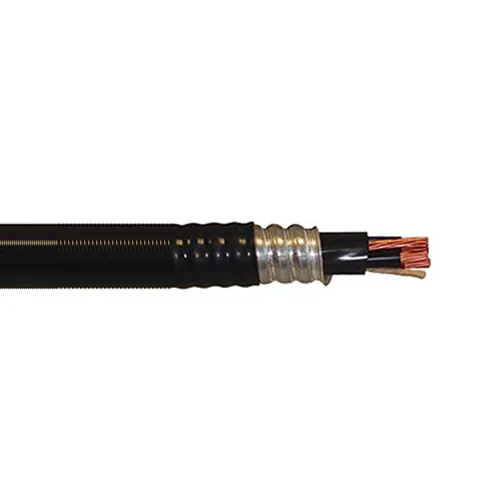

1/0/1C Teck 90 Bare Copper Aluminum Interlocked Armored Cable With Ground 1KV
Description:
• 1 - 3 copper conductors
• XLP insulation
• Copper ground wire
• Aluminum armor
• Teck 90
• PVC jacket
Application:
• Paper Mills
• Petrochemical Plants
• Petroleum Plants
• Commercial Buildings
Teck 90 is an ideal general purpose cable with excellent chemical and moisture resistance and is characterized by mechanical toughness. Cables are suitable for installation in ladder type trays, concealed or exposed, wet or dry locations and vertical installations
Also Known As:
1/0 AWG Teck 90 single conductor cable, 1/0 AWG 1KV bare copper armored cable, 1/0 AWG Aluminum interlocked Teck 90 cable, 1/0 AWG Teck 90 cable 1KV voltage rating, 1/0 AWG Single conductor armored cable specs, 1/0 AWG Teck 90 bare copper cable price, 1/0 AWG Aluminum armored 1KV cable, 1/0 AWG Teck 90 cable installation guide, 1/0 AWG Copper conductor Teck 90 cable, 1/0 AWG 1KV Teck 90 cable with armor,
Standards:
Manufactured and tested in accordance with the latest revisions of CSA Standard C22.2, ASTM B3, ASTM B8, ICEA S-66-524, and Ontario Hydro Provisional Spec. L891 SM-77
Scope:
This specification covers single and multi-conductor 1kV Teck 90 CSA approved cable construction. Each conductor is insulated with XLPE (crosslinked thermosetting polyethylene) insulation. Cable assembly has an uninsulated ground wire, PVC inner jacket, aluminum interlocked armor and black color outer jacket. These cables are capable of operating continuously at a temperature of 90°C for normal operations, 130°C for emergency overload conditions, and 250°C for short circuit conditions.
Specifications:
• Size: 1/0 AWG
• Conductor Diameter (inch): 0.362
• Insulation Thickness (inch): 80
• Inner Jacket Thickness (MILS): 45
• Inner Jacket (inch): 0.78
• Armor (inch): 1.00
• Outer Jacket (inch): 1.10
• Grd. Min. Cond. Size: 4 AWG
• Allowable Ampacity: 245
• Approx Net Weight (lbs)/Mft : 825
