10 THHN THWN-2 Stranded Copper Building Wire

10 THHN THWN-2 Stranded Copper Building Wire

$ 63.65

$ 82.75

Unavailable
10 THHN THWN-2 Stranded Copper Building Wire

10 THHN THWN-2 Stranded Copper Building Wire

$ 63.65

$ 82.75

Color:

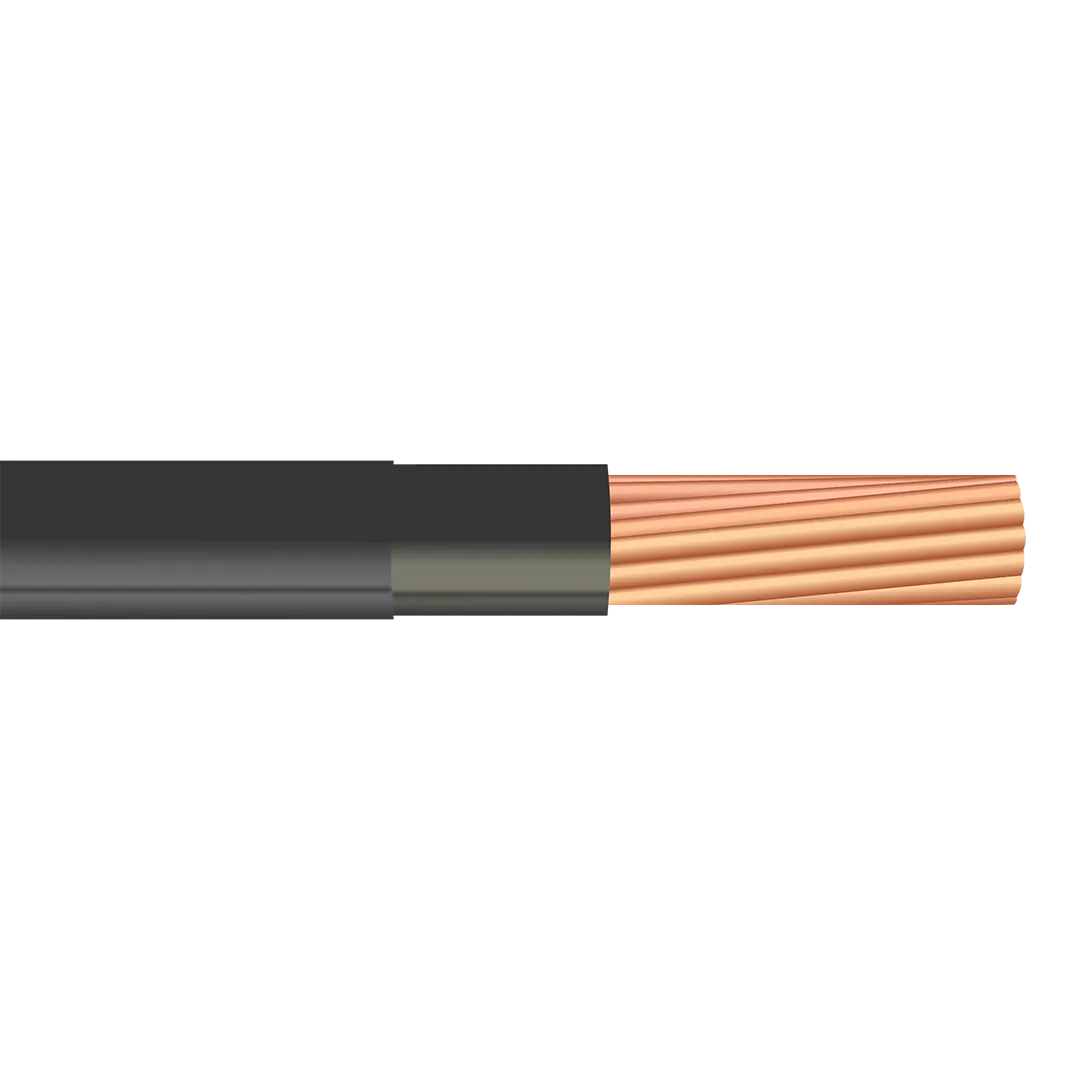

  • Black

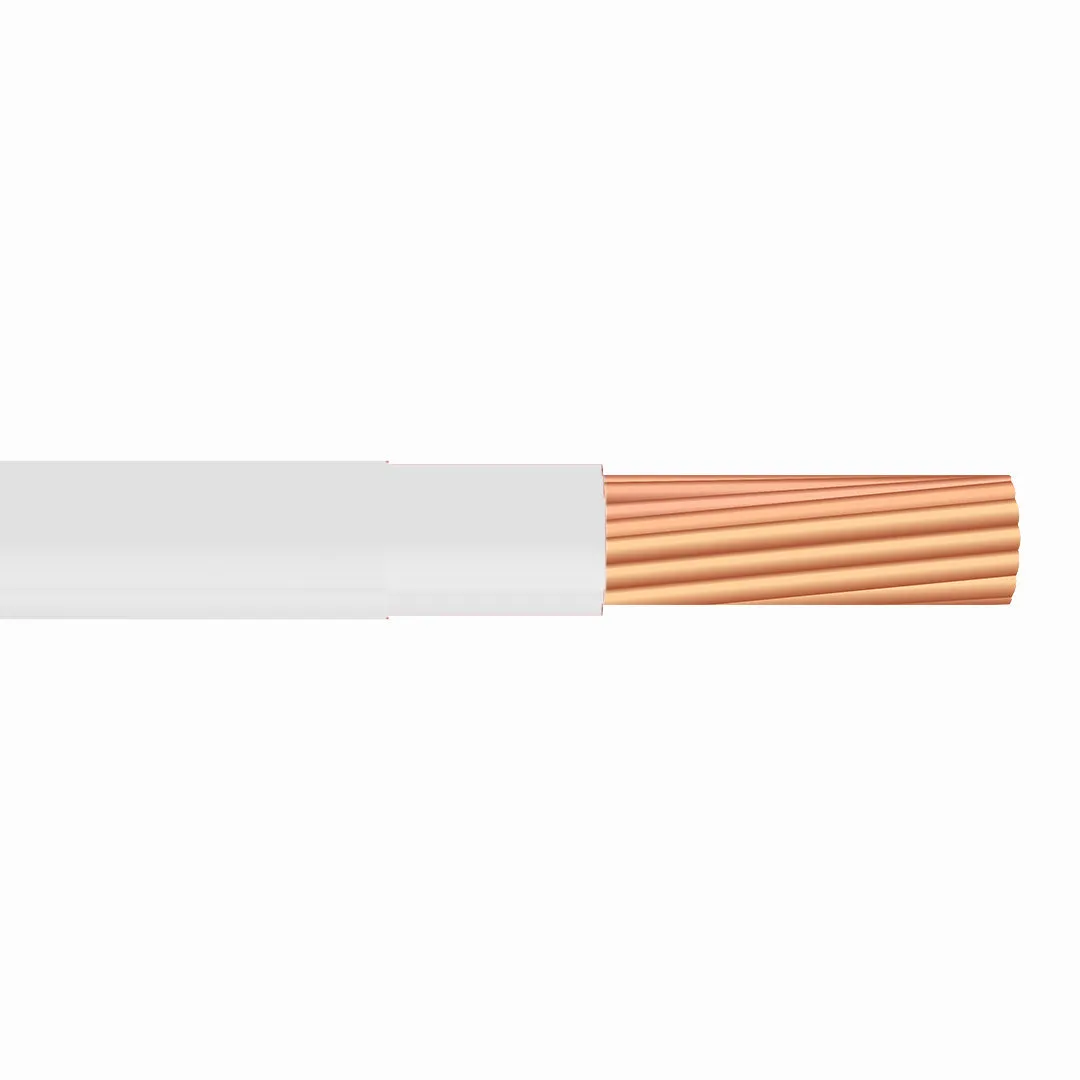

  • White

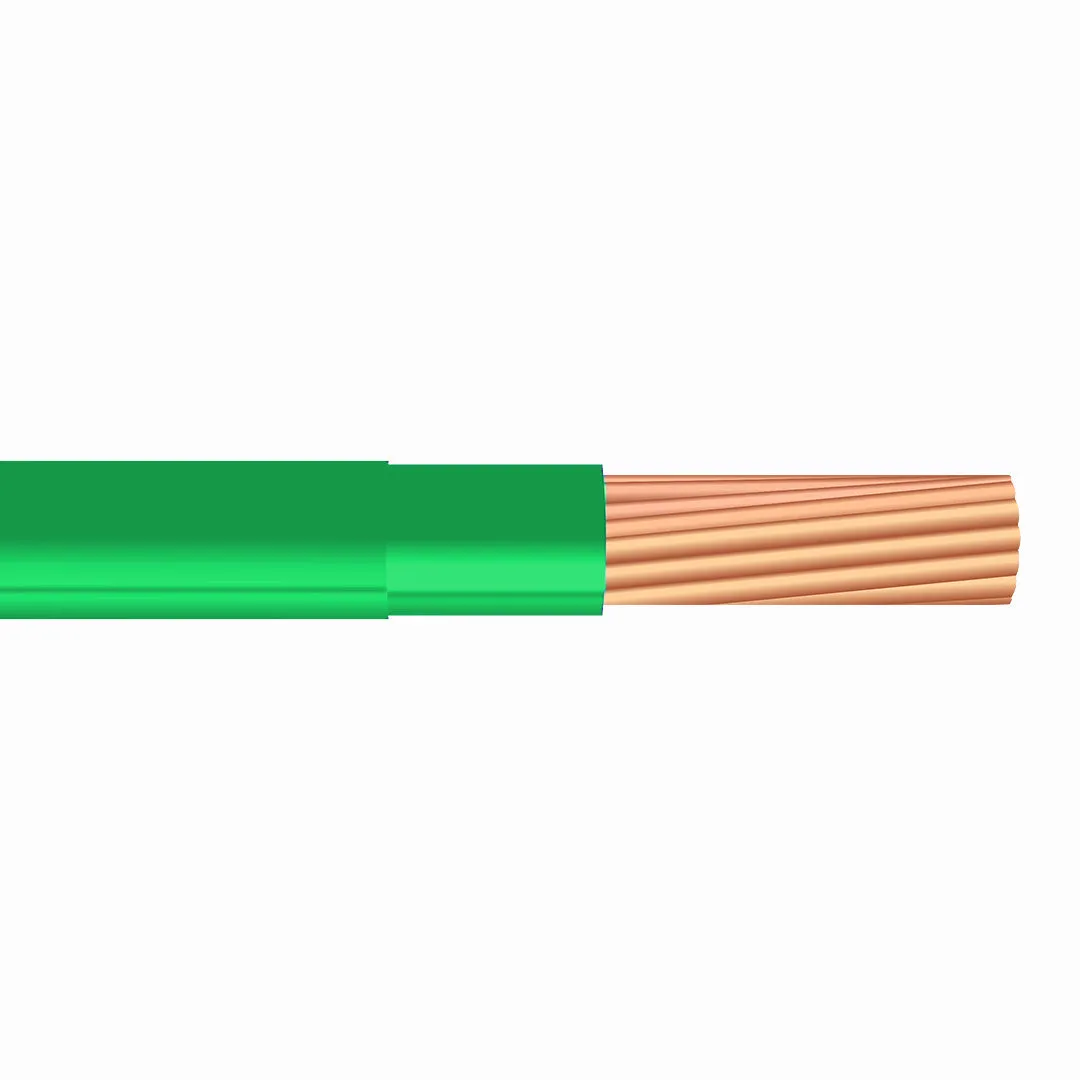

  • Green
  • Blue
  • Orange
  • Yellow
  • Brown

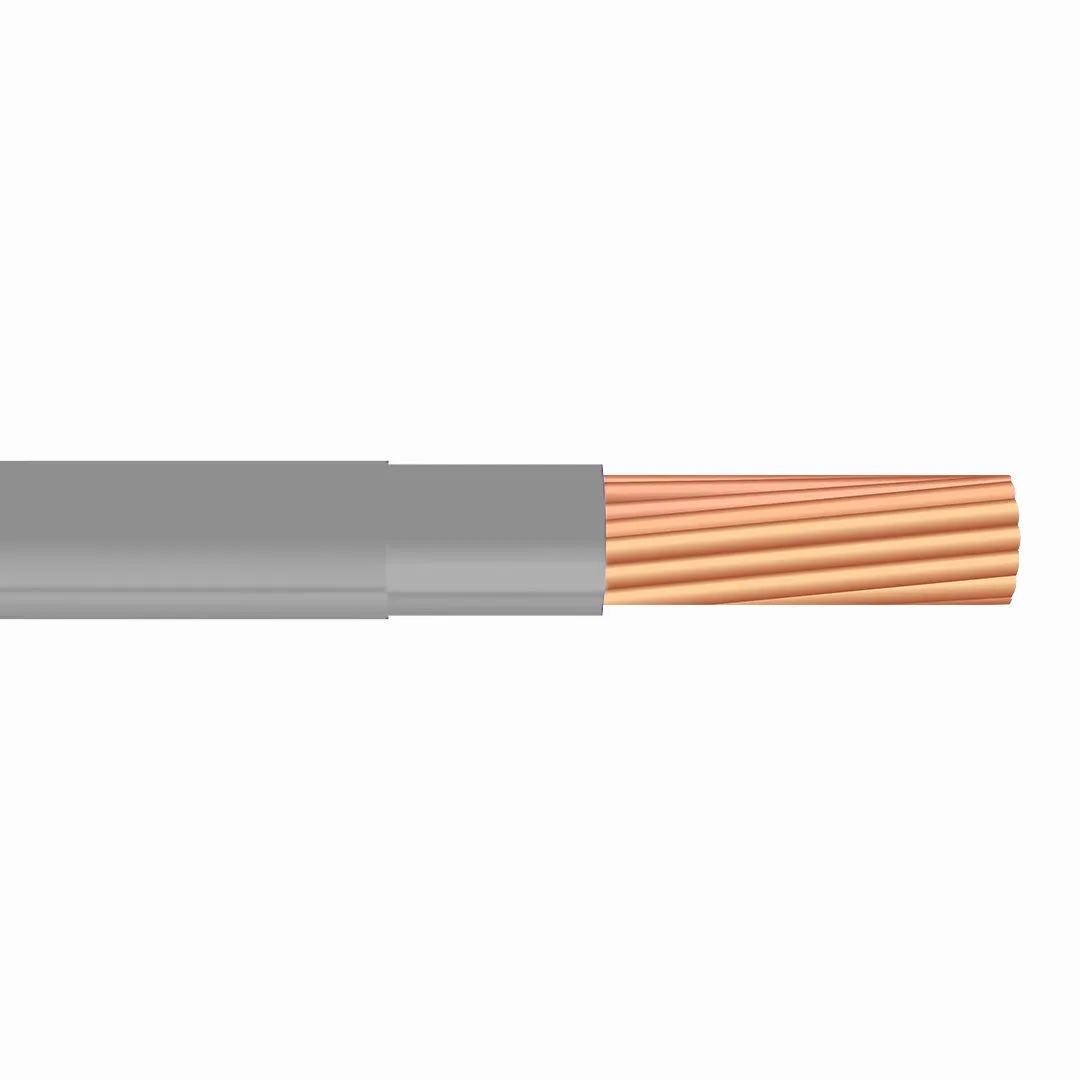

  • Gray

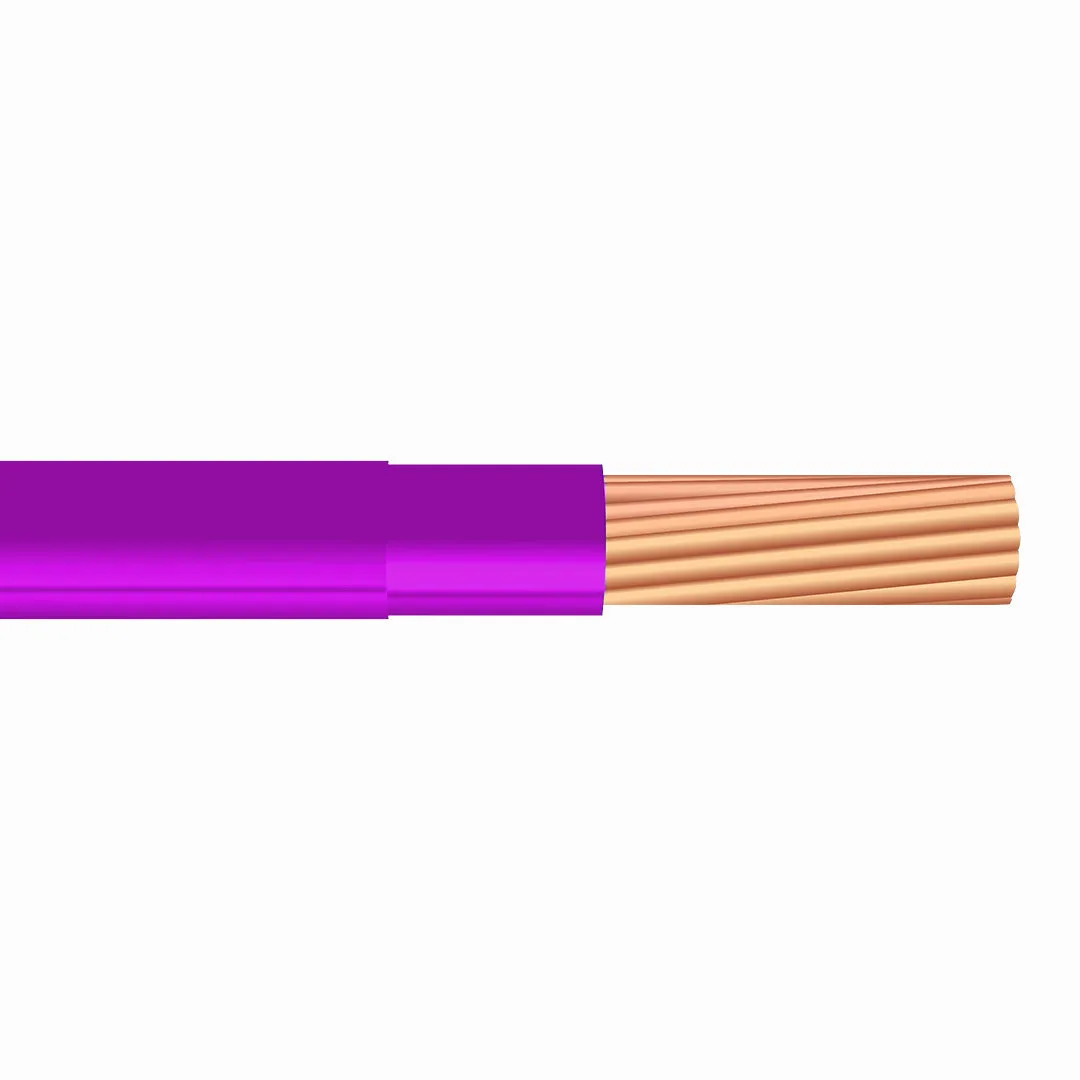

  • Purple

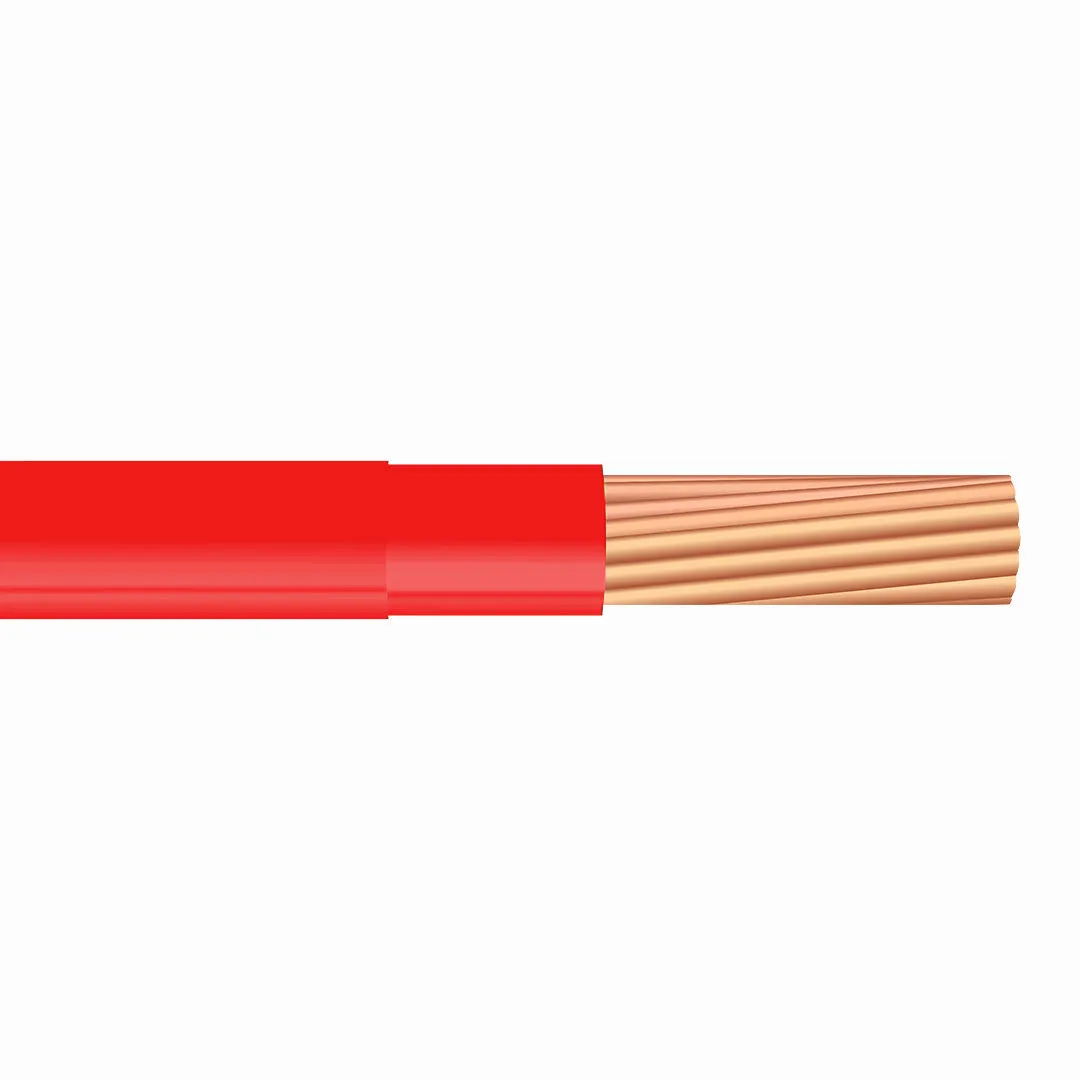

  • Red
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

[pdf] [/pdf]

10 THHN THWN-2 Stranded Copper Building Wire

THHN THWN-2 Copper Building Wire Allowable Ampacity in Duct: 40 Amps at 60ºC / 40 Amps at 75ºC / 40 Amps at 90ºC

Also Known As:

10  thhn, 10 awg thwn 2, 10 awg thhn, 10 solid thhn, 10 gauge stranded wire, 10 copper wire, 10 awg stranded copper wire, 10 awg Copper wire, 10 awg building cable, 10 awg conduit wire, 10 awg nylon wire, 10 awg construction cable, 10 awg thermoplastic-insulated copper wire, 10 awg THHN-PVC tray cable.

10 AWG THHN THWN-2 Applications:

THHN stands for thermoplastic high heat-resistant nylon. Known for versatility and durability, it is the most common type of building cable. The double marking THHN /THWN-2 indicates that the electrical wire is suitable for wet and dry conditions equally (The letter "W" means that it is water-safe). Additionally, the cable is resistant to corrosion, excessive dryness, and the impact of chemicals. The building wire is rated 90 degrees Celsius in both wet and dry locations. The electrical wire is rated at 600 V.

THHN Applications include:

  • Building Wiring: This encompasses everything from lighting circuits to outlets in homes, commercial buildings, and industrial facilities.
  • Conduit and Cable Trays: THHN is designed to be pulled through conduit, making it ideal for structured wiring systems in commercial and industrial settings. It's also commonly used in cable trays in industrial facilities.
  • Control Systems: THHN can be used for wiring control circuits, including those for machinery, HVAC systems, and other building automation components.
  • Machine Tool Wire: In manufacturing and industrial environments, THHN is commonly used to wire machine tools and equipment.
  • Large Appliances: THHN wires can be used for connections inside large appliances like ovens, ranges, and HVAC units.
  • Motor Connections: For connecting motors in both residential and commercial settings
  • Feeders and Branch Circuits: In electrical distribution systems, THHN wires can serve as both feeders (which extend from service panels to subpanels or major appliances) and branch circuits (which extend from panels to outlets, lights, or individual appliances).
  • Service Entrance: While specific SE cables exist for this purpose, THHN wires can also be used for service entrances when appropriately configured and protected.

Particular 10 AWG THHN Application Are:

  • Residential Appliances: Used for larger household appliances like certain electric ovens or water heaters.
  • Smaller HVAC Systems: Typically in residential or light commercial settings.
  • Residential Subpanels: Especially in situations where the subpanel serves only a portion of a home or an outbuilding.

10 AWG THHN THWN-2  Construction:

Conductor:

THHN THWN-2 conductors are constructed of annealed soft copper that follows ASTM B3 and ASTM B8 standards.

Insulation:

The cable is insulated with a thermoset plastic jacket (PVC) that is flame-retardant, sunlight-resistant, lead-free, strong, and stable. Without being too bulky, it ensures that the cable can be used in harsh conditions. The jacket is color-coded in accordance with ICEA Method 4.

10 AWG THHN THWN-2  Standards:

  • ICEA S-73-532
  • UL 1277 (Resistant to flame, moisture, and sunlight)
  • UL 1581, UL 83, UL 1063 , UL 758
  • A-A59544
  • ASTM B3 and B8 conductor
  • ANSI/NFPA 70 for Safe Electrical Design and Installation
  • RoHS compliant
  • Safe For Commercial and Industrial Use
  • Color-coded #1-E2 per ICEA S-73-532
  • May be used in NEC Class I and II systems
  • May be used in Division 2 hazardous locations
  • Allowed for Exposed Run (ER) and be used in accordance with NEC

10 AWG THHN THWN-2  Specifications:

  • Size AWG: 10
  • Outside Diameter: 3.78 mm / 0.149 inches
  • Cross Section Area:  5.26 mm2
  • Conductors: Annealed Soft Copper per ASTM B3 and ASTM B8
  • Stranding: Solid
  • Insulation: PVC
  • PVC Insulation Thickness: 3.78 mm / 0.149 inches
  • Nylon Thickness: 0.100 mm / 0.004 inches
  • Jacket: PVC
  • Weight (lbs/1000ft): 40

      Compatible with Manufacturer

      AWC :

      Black : THHN 10 19 0
      White : THHN 10 19 9
      Red : THHN 10 19 2
      Blue : THHN 10 19 6
      Yellow : THHN 10 19 4
      Violet : THHN 10 19 7
      Gray : THHN 10 19 8

      Wire & Cable Your Way : THN10

      Omni Cable :

      Black : M510ST-01
      White : M510ST-02
      Red : M510ST-03
      Green : M510ST-04
      Blue : M510ST-05
      Gray : M510ST-06
      Orange : M510ST-07
      Yellow : M510ST-08
      Purple : M510ST-09
      Brown : M510ST-10
      Pink : M510ST-11
      Tan : M510ST-12

      Southwire :

      Black : 22973201
      White : 22974001
      Red : 22975701
      Blue : 22976501
      Green : 22977301

      Yellow : 22978101
      Orange : 22979901
      Brown : 22980701
      Gray : 22981501
      Purple : 25659401
      Pink : 26053901
      Tan : 32017605
