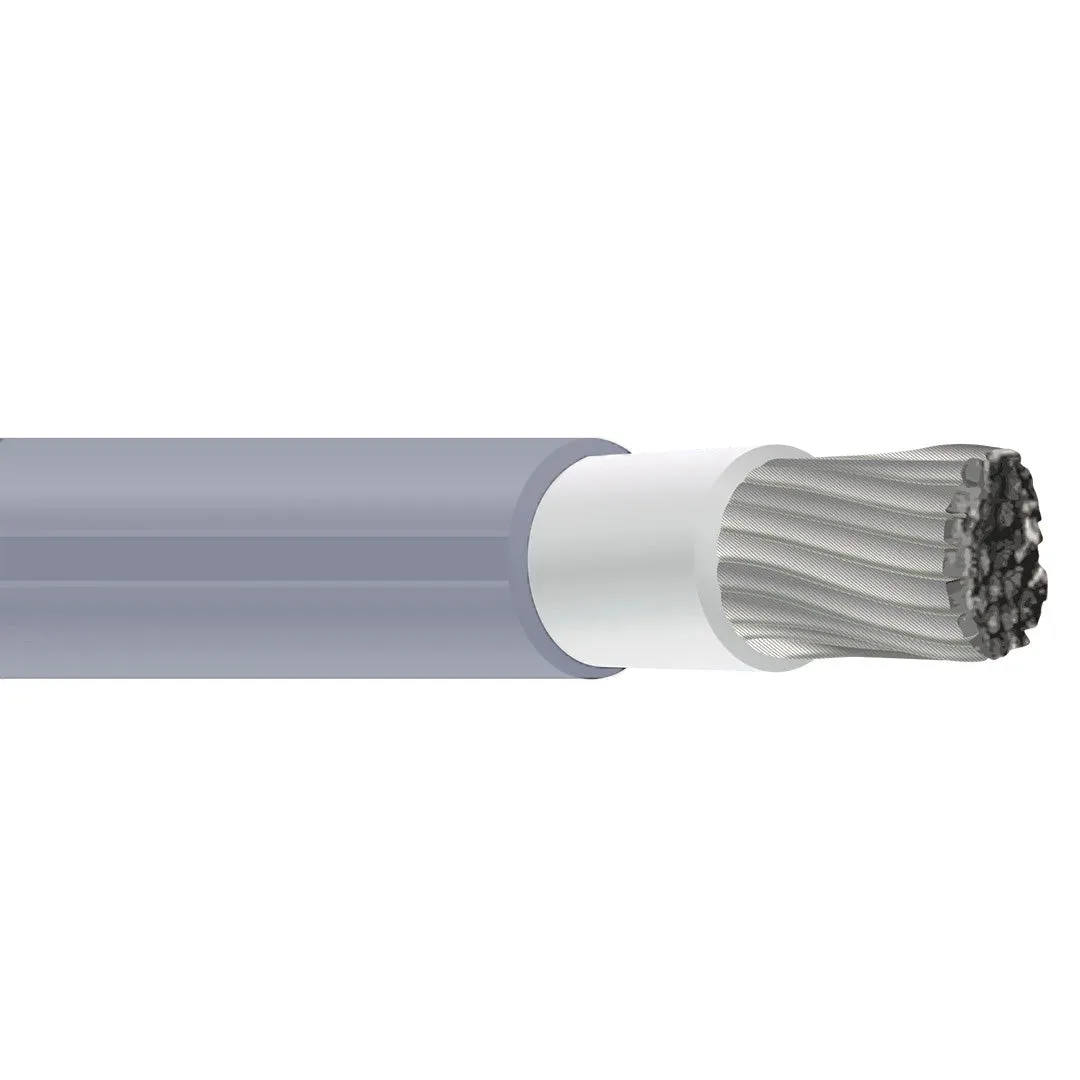

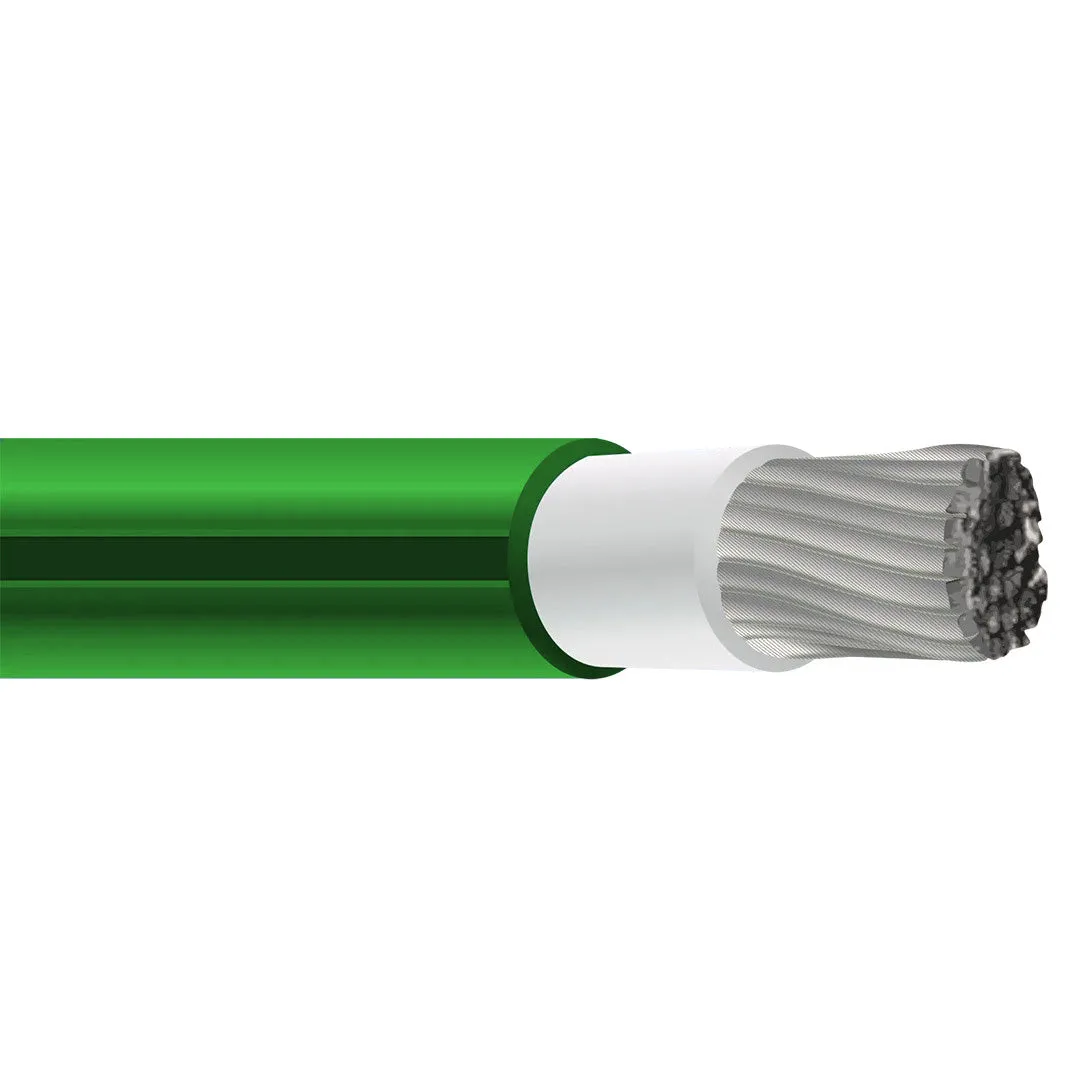

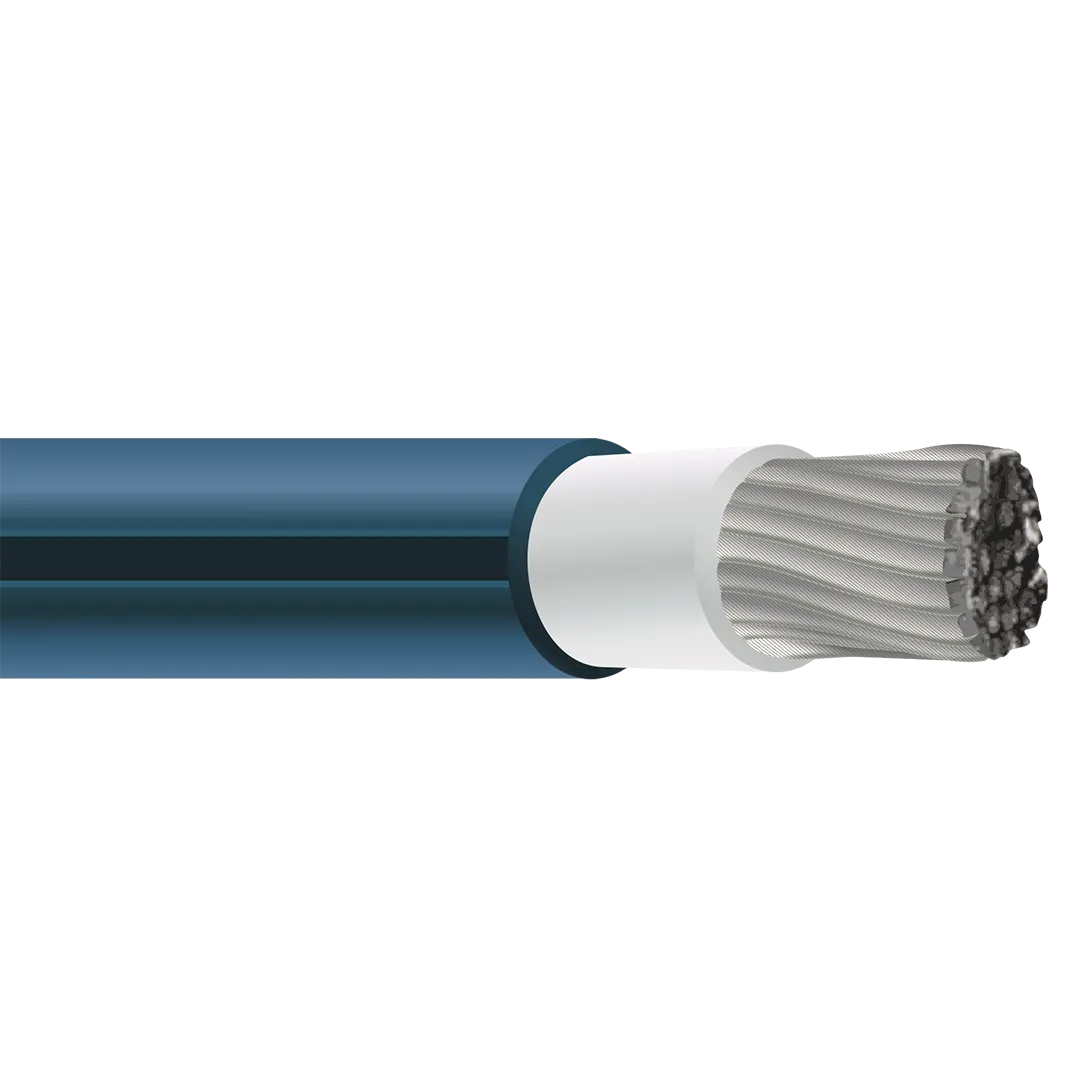

10 AWG TELCOFLEX II KS24194 L2 Central Office Power Wire

Allowable Ampacity for 10 AWG Telcoflex II KS24194 L2 Central Office Power Wire: 40 Amps

Applications:

Type L2 Central Office Power Cable is a rugged; RHH/RHW rated wire for 600V applications. Central Office Power Cable is suitable for use in telecommunication applications and for power distribution of AC and DC power in conduit or cable trays. Central Office Power Cable is available in a variety of colors.

Also Known As:

10 AWG TELCOFLEX II Central Office Power Cable, 10 AWG TELCOFLEX II Telephone Central Office Power Cable, 10 AWG TELCOFLEX II Telecom Power Wire.

Standards:

• UL listed Power Cable for Telephone Central Office Applications
• 1/0 and larger listed and marked FT4 and for CT use
• ST1 per UL1685 Vertical Tray Flame Test
• Meets UL VW-1 flame test
• Passes IEEE 1202, FT4 Vertical Tray Flame Test
• UL 44 Thermoset Insulated Wires and Cables
• Meets Telecordia specification GR-347-CORE
• CSA C22.2 No. 38 Thermoset-Insulated Wires and Cables,
• RW90

Construction:

Conductors:

Class I stranded tinned copper conductor for increased flexibility in accordance with ASTM B-33 & B-172 and covered with a mylar tape.

Insulation:

Low Smoke Zero Halogen LSZH cross linked polyolefin XLPO insulation, which is rated 90°C
Maximum conductor operating temperature: 90°C dry, 75°C wet or dry, maximum short circuits 250°C
Colors and sunlight resistance available upon request.

Specifications:

• Size AWG: 10
• No. of Strands: 105
• Conductor Diameter inches:  0.116
• Insulation Min. Avg. Thickness mils: 45
• Overall Diameter inches:  0.226
• Net Weight lbs/kft: 50 lbs
• Max DC Resistance @20C ohms/kft: 1.1100
• Current Capacity** amps: 40
