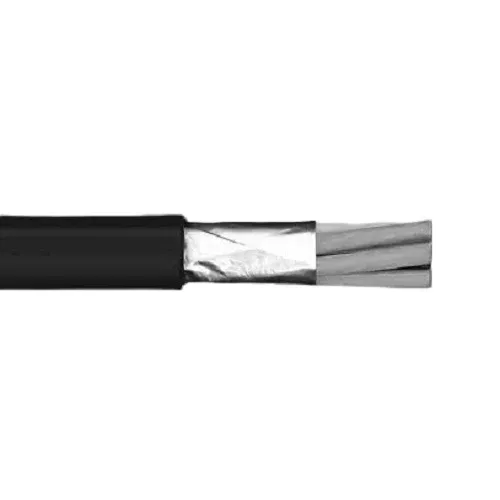

10 AWG 6C Type TC Control Cable FR-EPR Insulation 600 Volt 90°C CPE Jacket E-2
Application:
• UL listed and OSHA acceptable. Recognized for use in Class 1 or 2, Division 2 hazardous locations. Suitable for use in cable trays, raceways, ducts and conduits, direct burial or supported by a messenger for use at temperature ratings not exceeding 90°C in wet or dry locations and outdoors where a sunlight resistant rating is required. These cables shall conform to (UL) Type TC Power and Control Tray Cables and National Electrical Code Articles 336, 392, 500 and 501. These cables pass the IEEE-383 70,000 BTU flame test, the IEEE 1202/FT4 flame test and the ICEA T-90-520 210,000 BTU flame test. Cables pass a -40°C cold bend test. Designed for control, power, lighting, telemetry, signals and relay or traffic control.
Scope:
• This specification covers the minimum construction requirements for multiconductor (UL) listed Type TC cable consisting of Class B stranded annealed tinned copper, insulated with cross-linked polyethylene, cabled together and jacketed overall with a chlorinated polyethylene (CPE) jacket
Also Known As:
10 AWG 6C TC Type Control Cable, 10 AWG 6C FR-EPR Control Cable, 90°C CPE Jacket E-2, 600 Volt TC Control Cable, 10 AWG 6C Jacket E-2 Control Cable, 10 AWG 6C Type TC Control Cable FR-EPR, CPE Jacket E-2 Cable.
Construction:
Conductors:
Class B (7 wires) annealed tinned copper conforming to ASTM B-33 and B-8.
Insulation:
Flame retardant EPR shall be applied concentrically over each conductor and shall
conform to (UL).
Cabling Assembly:
The applicable number of conductors are cabled together with non-hygroscopic
fillers (as necessary).
Overall Jacket:
A black, flame, moisture, oil and sunlight resistant chlorinated polyethylene (CPE) jacket meeting the requirements of UL-1277 Table 11.1 shall be applied concentrically overall. The physical properties of the jacket comply with Table 50.28 of UL-1581. A high strength nylon yarn rip cord shall be placed under the jacket to facilitate stripping of the jacket
Testing:
These cables shall be tested physically and electrically in accordance with procedures as outlined by Underwriters’ Laboratories, Inc. Standard 1277 for Type TC Power and Control Tray Cables.
Specifications:
• AWG: 10
• No. of Conductors: 6
• Overall Jacket Thickness (Mils): 60
• Approx. Outside Diameter (In): .660
• Approx. Weight 1000 FT (Pounds): 299
