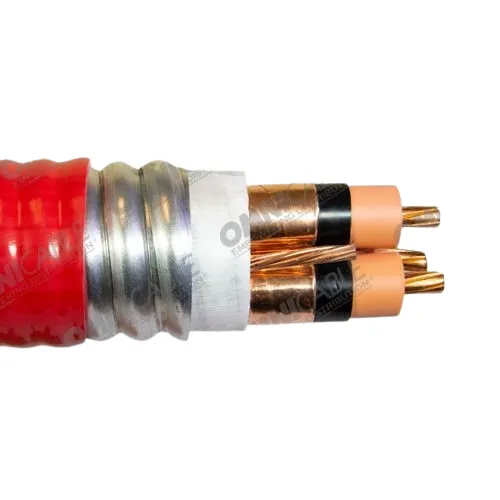

1/0 AWG 3C MV-105 Interlocked Armored Power Cable 15kV PVC Jacket
Description:
• 3 copper conductors
• Thermosetting conductor shield
• EPR insulation
• Thermosetting insulation shield
• Tape shield
• Copper ground wire
• Aluminum armor
• PVC Jacket
Application:
• Aerial installations
• Open trays
• Direct burial
• Troughs or continuous rigid
• Metal racks cable supports
These cables are capable of operating continuously at maximum conductor temperature of 105°C for normal operation, 140°C for emergency overload conditions, and 250°C for short circuit conditions, and are rated at 15,000V, 133% insulation level (ungrounded system).
Also Known As:
1/0 AWG MV-105 15kV armored cable specs, 1/0 AWG Interlocked armor MV-105 power cable, 1/0 AWG 15kV MV-105 PVC jacket cable, 1/0 AWG MV-105 15kV cable with armor, 1/0 AWG MV-105 medium voltage power cable, 1/0 AWG 15kV PVC jacketed power cable, 1/0 AWG MV-105 interlocked armored cable price, 1/0 AWG 15kV MV-105 cable voltage rating, 1/0 AWG MV-105 armored power cable installation, 1/0 AWG 15kV MV-105 copper conductor cable
Standards:
Manufactured and tested in accordance with the latest revisions of ICEA Pub. No. S-68-516, NEMA Pub. No. WC8, AEIC No. 6, and UL 1072. Passes IEEE 1202 (70,000 Btu/hr) and ICEA T-29-520 (210,000 Btu/hr) vertical cable tray flame tests.
Scope:
This specification covers three conductor EPR (ethylene propylene rubber) insulated, shielded, interlock armored, thermoplastic jacketed power cables with grounding conductor for use in aerial installations, metal racks, open trays, troughs, or continuous rigid cable supports. These cables are capable of operating continuously at a temperature of 105°C for normal operations, 140°C for emergency overload conditions, and 250°C for short circuit conditions, and are rated at 15,000V, 133% insulation level (ungrounded system).
Specifications:
• Size: 1/0 AWG
• Conductor Diameter (inch): 0.362
• 0.220"Insulation Thickness (inch): 0.865
• Grd. Min. Cond. Size: 4 AWG
• Extruded Insulation Shield Diameter (inch): 0.945
• Armored Diameter (inch): 2.432
• Jacket Thickness (inch): 0.075
• Approx. O.D.(inch): 2.607
• Allowable Ampacity: Direct Burial= 225, In Air= 240
• Approx Net Weight (lbs)/Mft : 3177
